ISOLATED DC-DC CONVERTERS

Standard Isolated and Non-Isolated DC-DC converters range from 0.25W to 150W. Many parts are available from stock with lead times as little as 3 weeks. Custom applications are welcomed with low minimums. Models are available in a wide variety of performance features, input/output combinations, isolation and package types. AC-DC Power Supplies are also available for custom applications.

0.25 Watt ICI11D DC-DC SERIES DC-DC converter Single Output, 0.25 Watt, 4 Pin Sip and 8 Pin DIL package, 1000Vdc Isolation, Unregulated Output types.

1.0 Watt MBR01 SIP SERIES DC-DC converter up to 1 Watt output power, 7 pin SIP package 1000Vdc Isolation, Unregulated Output types, 94V-0 package material. Available stock, competitively priced.

1.0 Watt MBR01 3KSIP SERIES DC-DC converter up to 1 Watt Output power, 7 pin SMD package, 1000Vdc Isolation, Unregulated Output types, Input Voltage range +/-10%, UL 94V-0 package material.

1.0 Watt MBR01 SERIES DC-DC converter up to 1 Watt Output power, designed for surface mount application, provides unregulated power in a 14Pin SMD Package, with 1000Vdc Isolation, UL 94V-0 package material.

1.8 Watt MBR1.8 SERIES DC-DC converter up to 1.8 Watts Output power, designed for surface mount application, provides unregulated output types in a 24 Pin DIL & SMD package, with 500Vdc Isolation.

3 Watt MBR03 DC-DC SERIES DC-DC converter up to 3 Watts Output power, packaged in a 24 Pin DIL metal case, 1500 Vdc Isolation and provides 4:1 input range.

5 Watt BRM05 DC-DC SERIES DC-DC converter up to 5 Watts Output power, designed with wide input voltage range 2:1, package size,(1x2x0.4"), efficiency to 82%.

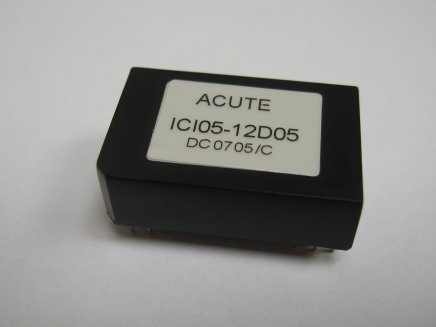

5-6 Watt ICI-05 DC-DC SERIES DC-DC converter up to 6 Watts Output power, 2:1 Wide Input Voltages: 9-18V, 18-36V, 36-72V, 24Pin DIL (1.25x0.8x0.4inches) Package, efficiency to 82%

8 Watt ICI-08 DC-DC SERIES DC-DC converter up to 8 Watts Output power, 2:1 Wide Input Voltages: 9-18V, 18-36V, 36-72V, 24Pin Dil (1.25x0.8x0.4inches) package, efficiency to 82%

10 Watt MAC10 DC-DC SERIES DC-DC converter up to 10 Watts Output power, designed as surface mount and thru-hole solution for wide range of applications when low profile and ease of assembly is required. Wide Input DC-DC, range 2:1, 9-18V, 18-36, 36-72V, 24pin DIL package.

10 Watt BRM10 DC-DC SERIES DC-DC converter up to 10 Watts Output power, Wide Input Voltage Range, 2:1, 9-18V, 18-36V and 36-72V, package size, 2 X 1 X 0.4", efficiency to 80%, Isolation Voltage, 1500VDC.

10 Watt ICI68DW10 Wide Input DC-DC SERIES DC-DC converter up to 10 Watts Output power, Wide Input Voltage Range, 4:1, 9-36V, 18-75V, package size, 31.8mm 20.3mm 12.2mm", efficiency to 83%.

12 Watt ICI68D12 DC-DC SERIES DC-DC converter up to 12 Watts Output power, Wide Input Voltage Range, 2:1, 9-18V, 18-36V, 36-75V, package size. Efficiency to 83%.

12 Watt ICI68DW12 Wide Input DC-DC SERIES DC-DC converter up to 12 Watts Output power, Wide Input Voltage Range, 4:1, 9-36V, 18-75V, package size, 31.8mm 20.3mm 12.2mm", efficiency to 83%.

15 Watt MAC15 DC-DC SERIES DC-DC converter up to 15 Watts Output power, designed as a surface-mount & thru-hole solution for a wide range of applications where low profile and ease of assembly are needed.

15 Watt BRM15 WIDE INPUT VOLTAGE RANGE DC-DC SERIES DC-DC converter up to 15 Watts Output power, designed with wide input voltage range 2:1, 15 Watts (1x2x0.4") and efficiency to 84%.

20 Watt MAC20 DC-DC SERIES DC-DC converter up to 20 Watts Output power, features Single, Dual & Triple Outputs. Wide Input range 2:1, pick & place packing. High efficiency to 86%.

20 Watt SLV20 DC-DC SERIES DC-DC converter up to 20 Watts Output power, designed as a surface-mount & thru-hole solution for a wide range of applications where low voltage, high efficiency and ease of assembly are required with open frame construction.

20 Watt WRF20 DC-DC SERIES DC-DC converter up to 20 Watts Output power, designed as an Industry Standard solution for a wide range of applications where light weight and ease of assembly are needed. Utilizing the latest thermal transfer techniques, 4:1 DC input range.

25 Watt SFP25 DC-DC SERIES DC-DC converter up to 25 Watts Output power, designed as an Industry Standard Pinout solution for a wide range of applications where light weight and ease of assembly are needed. Utilizing the latest thermal transfer techniques in open frame construction.

30 Watt MAC30 DC-DC Series DC-DC converter up to 30 Watts Output power, designed as a surface-mount & thru-hole solution for a wide range of applications.

40 Watt SFP40 DC-DC SERIES DC-DC converter up to 40 Watts Output power, designed as an industry standard footprint solution for a wide range of applications where light weight and ease of assembly are needed, utilizing the latest thermal transfer techniques.

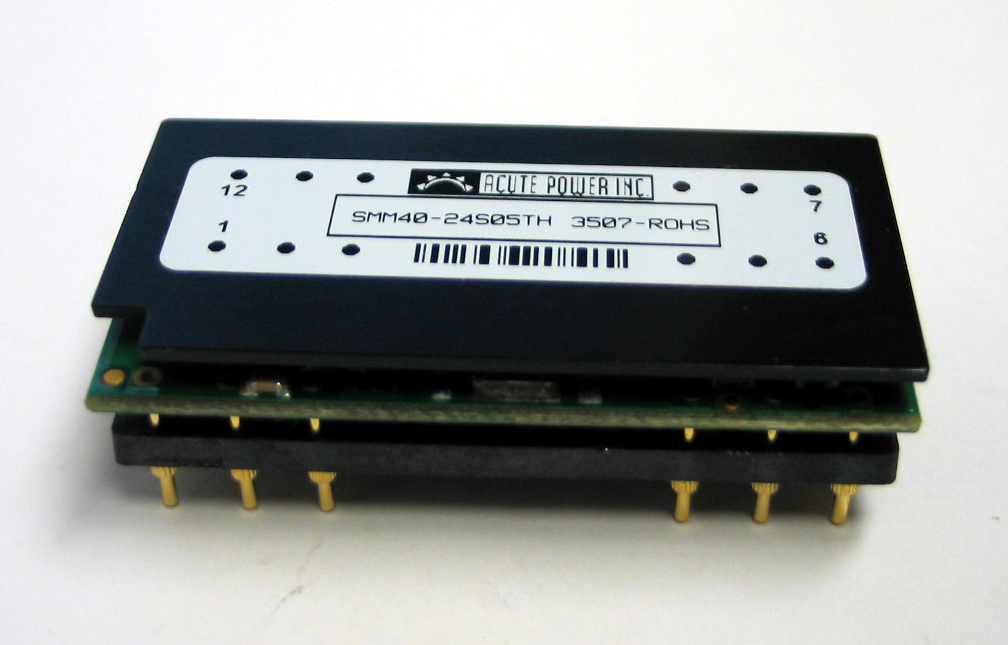

40 Watt SMM40 DC-DC SERIES DC-DC converter up to 40 Watts Output power, in a 1 x 2 x 0.45 surface mount and through-hole package. The SMM40 has high efficiency at low voltages, combined with low cost. Input voltages range 9-75Vin to 1.5-5.0Vout.

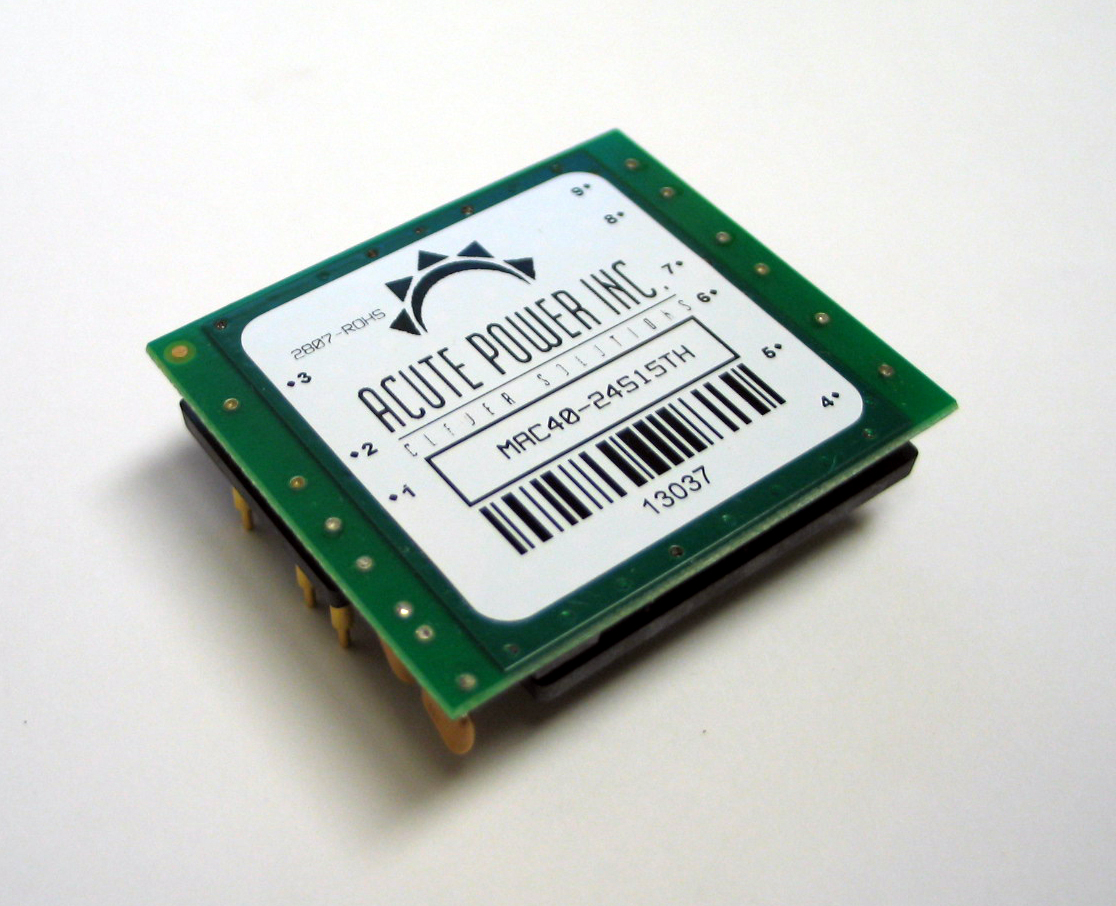

40 Watt MAC40 DC-DC SERIES DC-DC converter up to 40 Watts Output power, designed as a surface-mount & thru-hole solution for a wide range of applications.

150 Watt QMM150 DC-DC SERIES DC-DC converter up to 150 Watts Output power, is a high density, dual phase (interleaved) constructed design. This product is a highly flexible/configured design, where as the Dual outputs are independently regulated and isolated, meaning they can be configured as an independent, dual positive, +/- dual or series "stacked". "Preliminary"
