ICI82T THROUGH HOLE CURRENT SENSE TRANSFORMERS AND INDUCTORS SERIES
FEATURES
- Designed for Switching Power Supply Applications.
- Frequency Range from 20Khz to 200Khz
- Recognized by UL 1950
- TEST CONDITIONS: Inductance..........10KHz/500mV
Electrical Specifications @25C - Operating Temperature -30 to +130C
| Part Number******** | Schem figure | Turns NS | Sec.Inductance mH (MIN) | Sec.Inductance Test Voltage (15.75Khz) | RS (MAX) | RT (NOM) | Primary Unipolar Rating (max) | Primary Bipolar AMP Rating (max) |
| ICI82T–502ANL | A | 50 | 5.0 | 0.5 | 0.7 | 50 | 150 | 300 |
| ICI82T–203ANL | A | 100 | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803ANL | A | 200 | 80.0 | 2.0 | 4.50 | 200 | 600 | 1200 |
| ICI82T–502BNL | B | 50CT | 5.0 | 0.5 | 0.7 | 50 | 150 | 300 |
| ICI82T–203BNL | B | 100CT | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803BNL | B | 200CT | 80.0 | 2.0 | 4.50 | 200 | 600 | 1200 |
| ICI82T–184BNL | B | 300CT | 180.0 | 3.0 | 11.0 | 300 | 900 | 1800 |
| ICI82T–203CNL | C | 100 | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803CNL | C | 200 | 80.0 | 2.0 | 4.50 | 200 | 600 | 1200 |
| ICI82T–502DNL | D | 50CT | 5.0 | 0.5 | 0.7 | 50 | 150 | 300 |
| ICI82T–203DNL | D | 100CT | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803DNL | D | 200CT | 80.0 | 2.0 | 4.50 | 200 | 600 | 1200 |
| ICI82T–502ENL | E | 50 | 5.0 | 0.5 | 0.7 | 50 | 150 | 300 |
| ICI82T–203ENL | E | 100 | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803ENL | E | 200 | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–502FNL | F | 50CT | 5.0 | 0.5 | 0.7 | 50 | 150 | 300 |
| ICI82T–203FNL | F | 100CT | 20.0 | 1.0 | 1.40 | 100 | 300 | 600 |
| ICI82T–803FNL | F | 200CT | 80.0 | 2.0 | 4.50 | 200 | 600 | 1200 |
| ICI82T–184FNL | F | 300CT | 180.0 | 3.0 | 11.0 | 300 | 900 | 1800 |

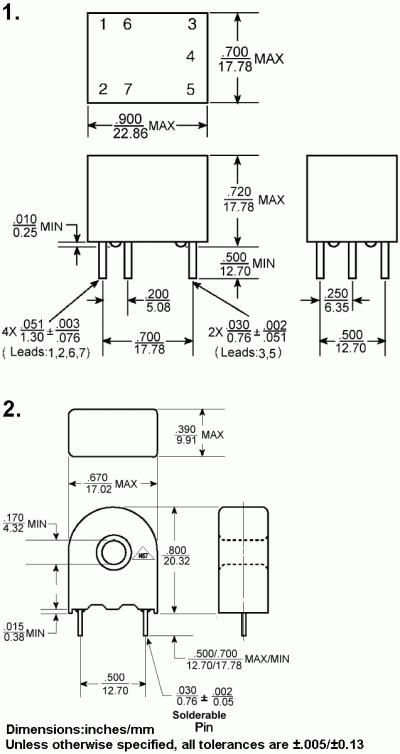

MARKINGS AND DIMENSIONS
